Fixed-Arm Turret Carousel Machine Areas

Request Information

3-ARM Turret Machine Areas

Models	Width – FT \| IN \| CM	Depth – FT \| IN \| CM	Height – FT \| IN \| CM
RS-1400	21′ \| 246″ \| 625 cm	19′ \| 222″ \| 564 cm	11′ \| 126″ \| 320 cm
RS-1600	28 \| 334 \| 848	25 \| 300 \| 762	11 \| 132 \| 335
RS-1900	28 \| 340 \| 864	21 \| 255 \| 648	11 \| 132 \| 335
RS-2200	32 \| 383 \| 973	26 \| 315 \| 800	14 \| 168 \| 427
RS-2600	33 \| 396 \| 1006	27 \| 320 \| 813	14 \| 168 \| 427
RS-3000	48 \| 578 \| 1468	45 \| 540 \| 1372	16 \| 192 \| 488

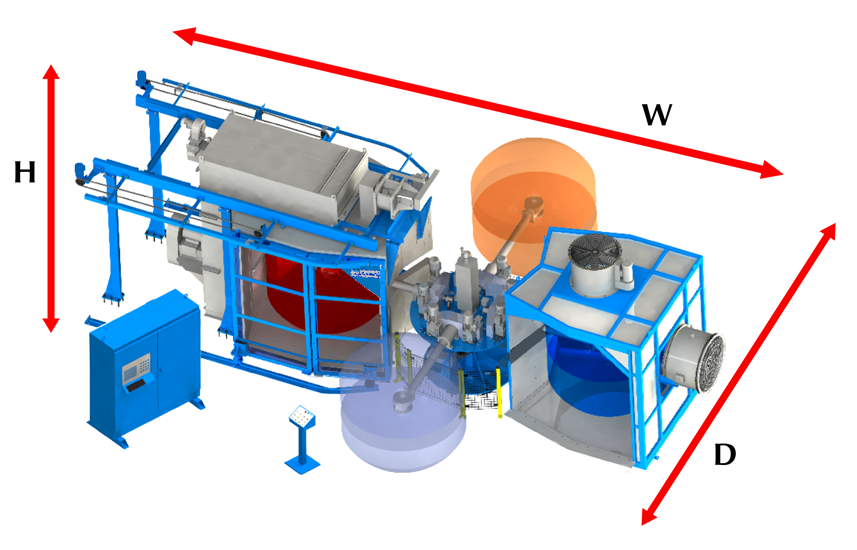

4-ARM Turret Machine Areas

Models	Width – FT \| IN \| CM	Depth – FT \| IN \| CM	Height – FT \| IN \| CM
RS-1400	21′ \| 246″ \| 625 cm	19′ \| 222″ \| 564 cm	11′ \| 126″ \| 320 cm
RS-1600	28 \| 334 \| 848	25 \| 300 \| 762	11 \| 132 \| 335
RS-1900	29 \| 340 \| 864	21 \| 255 \| 648	11 \| 132 \| 335
RS-2200	32 \| 383 \| 973	26 \| 315 \| 800	14 \| 168 \| 427
RS-2600	33 \| 396 \| 1006	27 \| 320 \| 813	14 \| 168 \| 427
RS-3000	48 \| 578 \| 1468	45 \| 540 \| 1372	16 \| 192 \| 488

Fixed-Arm Turret Molds Areas and Weight Capacities
